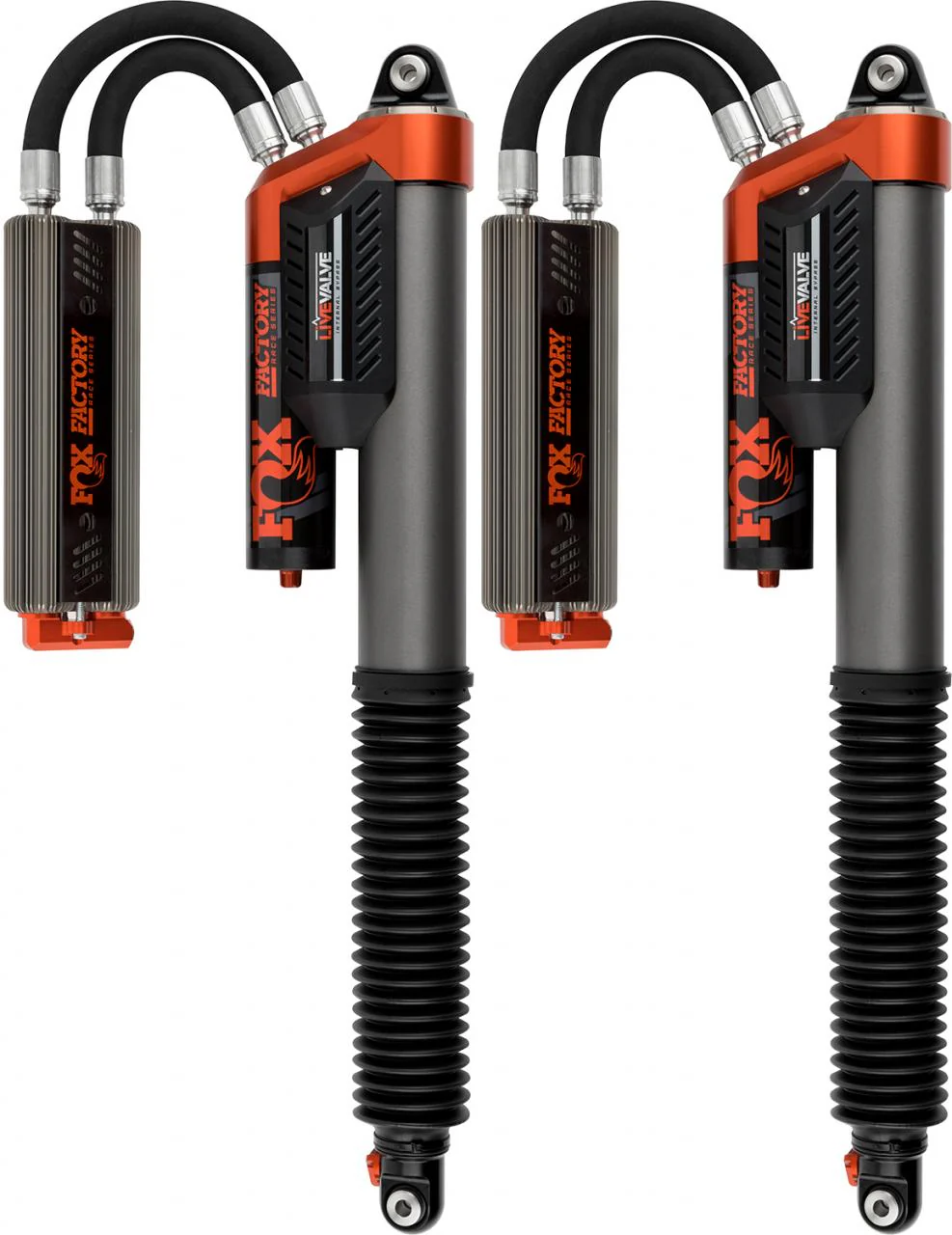

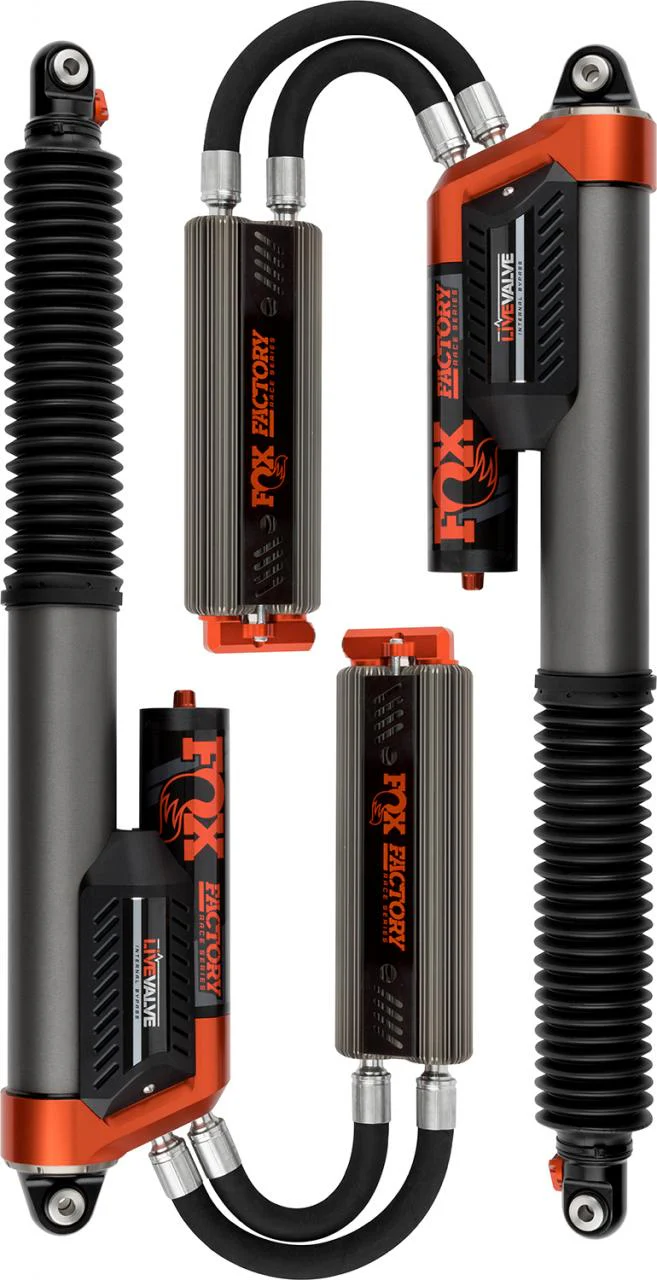

Fox Factory Race Series 3.0 Live Valve Internal Bypass Piggyback (Pair)-Adjustable
Ford Raptor 2019-2020 Rear Shock
By using vehicle sensors and accelerometers, Live Valve can instantly adapt to inertial, steering, braking, and acceleration inputs to actively maximize handling, comfort, and bottom-out resistance. Three-way quick switch adjusters allow the shocks to be optimized for On-Road Performance, On-Road Comfort, or Off-Road Performance while the external cooling system ensures they will perform at their best when you are blasting through the desert.
NEW Live Valve semi active technology equipped, plug and play integration to factory electronics

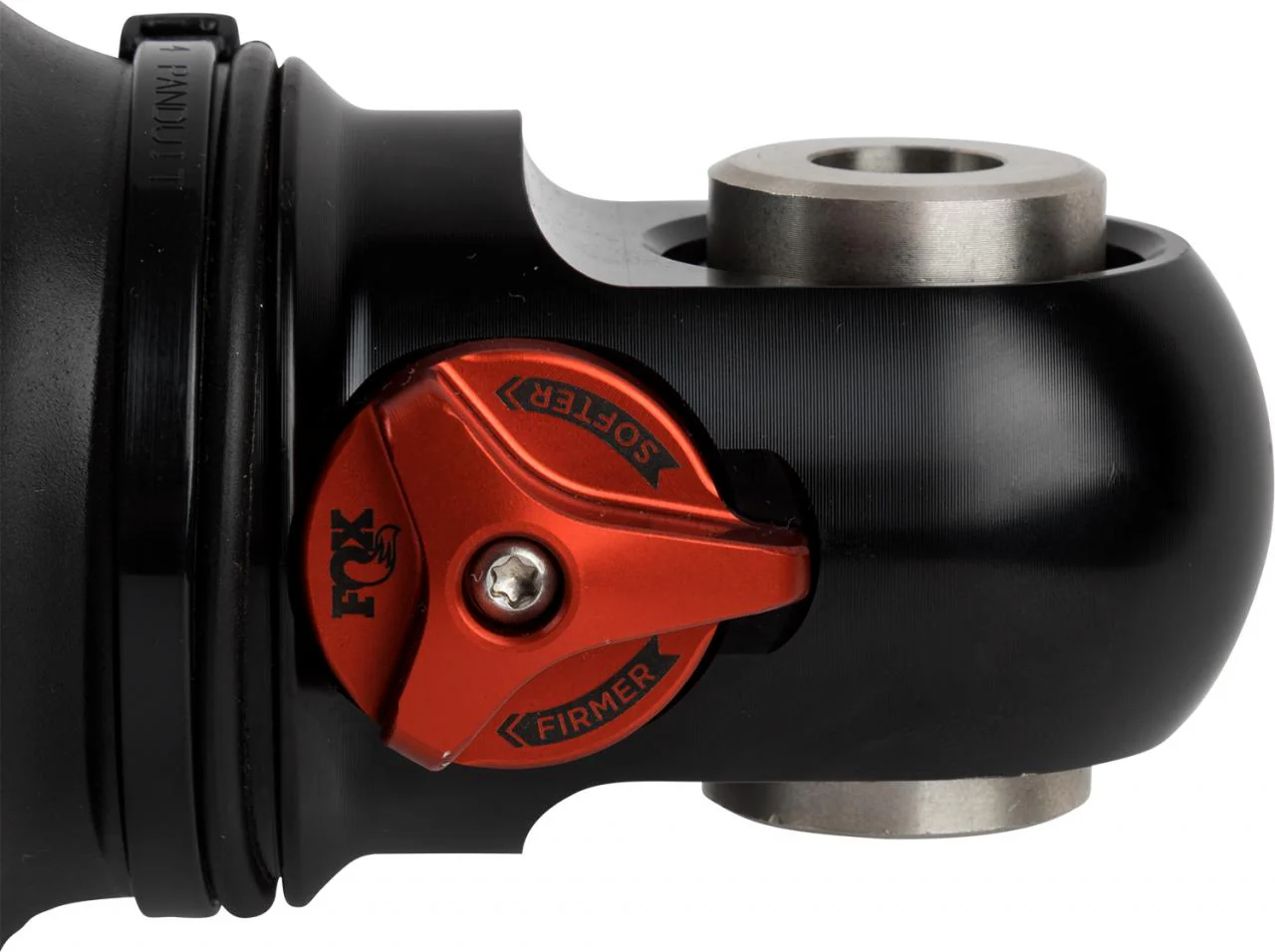

NEW Rebound and compression adjustable via Quick Switch Technology (QS3)
NEW Rotatable hose fittings for easy installation
FOX patented, position-sensitive Internal Bypass damping technology
Installation Guide
| Body | Hard 3.0" impact extruded and CNC machined 6061-T6 hard-anodized aluminum body resists corrosion and weighs less than steel |
|---|---|
| Body Plating | Hard-anodized for a durable finish |
| Reservoir | Hard anodized aluminum finned remote reservoir (front) and piggyback reservoir and cooler (rear) resist corrosion and help dissipate heat fast. External fins act as heat sinks for increased heat dissipation. |
| Components | Anodized, CNC-machined 6061-T6 billet aluminum |
| Spring | Heavy duty 3.75? racing spring (fronts) |
| Shaft | 7/8" hard chrome plated 17-4 H900 stainless steel |
| Piston | Hard anodized 6061-T6 billet aluminum high flow race piston |
| Valving | Application-specific valving to maximize performance |
| Seals | Redundant sealing pack system main seal, wiper seal, and scraper seal resist leaks in harsh conditions |
| Oil | JM92 Advanced Suspension Fluid |
| Bearing | PTFE-lined, heat-treated, alloy steel spherical keep the shock movement quiet and smooth |
| Mounting | Heat treated steel spherical heim mounting |
| Adjustments | Adjustable ride-height/preload |
| QS3 rebound and compression adjuster | |
| Travel (in) | 12.170 |
| Compressed (in) | 18.980 |
| Extended (in) | 31.150 |
| Top Mount | Eyelet |
| Bottom Mount | Eyelet |
| Fitment notes | External Cooling System (ECS2) Mounting Hardware Included |
| MSRP | $3399.95 |
$1,019.98
Original: $3,399.95
-70%Fox Factory Race Series 3.0 Live Valve Internal Bypass Piggyback (Pair)-Adjustable—
$3,399.95
$1,019.98More Images
Fox Factory Race Series 3.0 Live Valve Internal Bypass Piggyback (Pair)-Adjustable
Ford Raptor 2019-2020 Rear Shock
By using vehicle sensors and accelerometers, Live Valve can instantly adapt to inertial, steering, braking, and acceleration inputs to actively maximize handling, comfort, and bottom-out resistance. Three-way quick switch adjusters allow the shocks to be optimized for On-Road Performance, On-Road Comfort, or Off-Road Performance while the external cooling system ensures they will perform at their best when you are blasting through the desert.
NEW Live Valve semi active technology equipped, plug and play integration to factory electronics
NEW Rebound and compression adjustable via Quick Switch Technology (QS3)
NEW Rotatable hose fittings for easy installation
FOX patented, position-sensitive Internal Bypass damping technology
Installation Guide
| Body | Hard 3.0" impact extruded and CNC machined 6061-T6 hard-anodized aluminum body resists corrosion and weighs less than steel |
|---|---|
| Body Plating | Hard-anodized for a durable finish |
| Reservoir | Hard anodized aluminum finned remote reservoir (front) and piggyback reservoir and cooler (rear) resist corrosion and help dissipate heat fast. External fins act as heat sinks for increased heat dissipation. |
| Components | Anodized, CNC-machined 6061-T6 billet aluminum |
| Spring | Heavy duty 3.75? racing spring (fronts) |
| Shaft | 7/8" hard chrome plated 17-4 H900 stainless steel |
| Piston | Hard anodized 6061-T6 billet aluminum high flow race piston |
| Valving | Application-specific valving to maximize performance |
| Seals | Redundant sealing pack system main seal, wiper seal, and scraper seal resist leaks in harsh conditions |
| Oil | JM92 Advanced Suspension Fluid |
| Bearing | PTFE-lined, heat-treated, alloy steel spherical keep the shock movement quiet and smooth |
| Mounting | Heat treated steel spherical heim mounting |
| Adjustments | Adjustable ride-height/preload |
| QS3 rebound and compression adjuster | |
| Travel (in) | 12.170 |
| Compressed (in) | 18.980 |
| Extended (in) | 31.150 |
| Top Mount | Eyelet |
| Bottom Mount | Eyelet |
| Fitment notes | External Cooling System (ECS2) Mounting Hardware Included |
| MSRP | $3399.95 |
